BTMETER BT-39B Digital Multimeter DC/AC Voltage Current Meter Resistance

BTMETER BT-39B Digital Multimeter DC/AC Voltage Current Meter Resistance

Prix habituel $29.99 USD
Prix habituel Prix soldé $29.99 USD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.

DESCRIPTION:

This portable multimeter with stable performance and anti-dropping capacity, uses 2000 counts digit LCD monitor to offer clear readings, giving excellent performance and exquisite making as a handy utility instrument.

FEATURES:

♦ Used to test DC & AC voltage, DC & AC current, resistance, temperature, battery test, positive diode.

♦ Voltage fall and audible continuity.

♦ 2000 counts digit LCD monitor with character 25mm high offers clear readings.

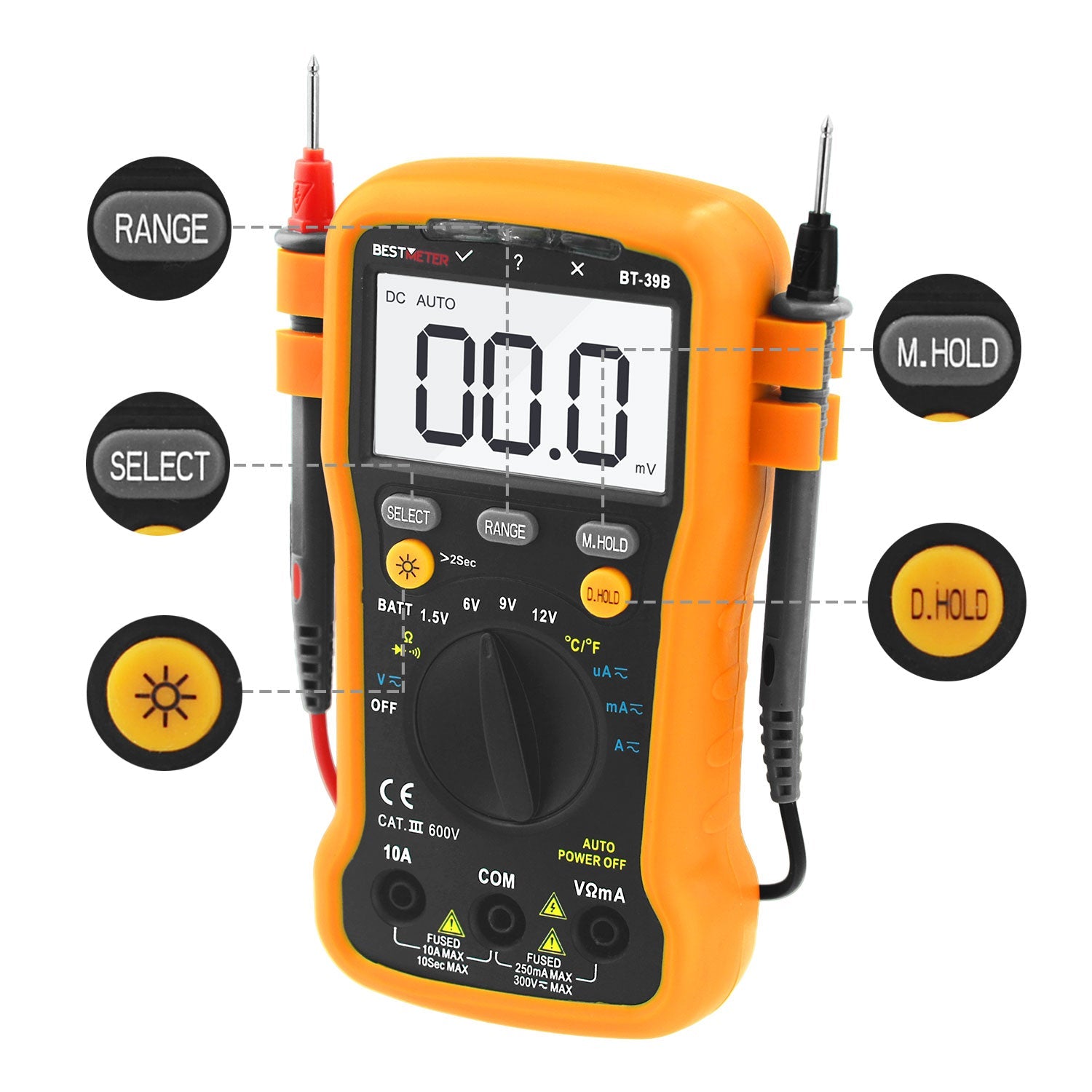

♦ 5 keys: some test functions selections, unit switch, backlight on-off, test modes switch, maximum.

♦ Value & display value hold.

♦ DC/AC & ℃/℉ unit switchable, manual/auto test modes switchable.

♦ Battery test: with green/yellow/red lights to clearly show the battery state.

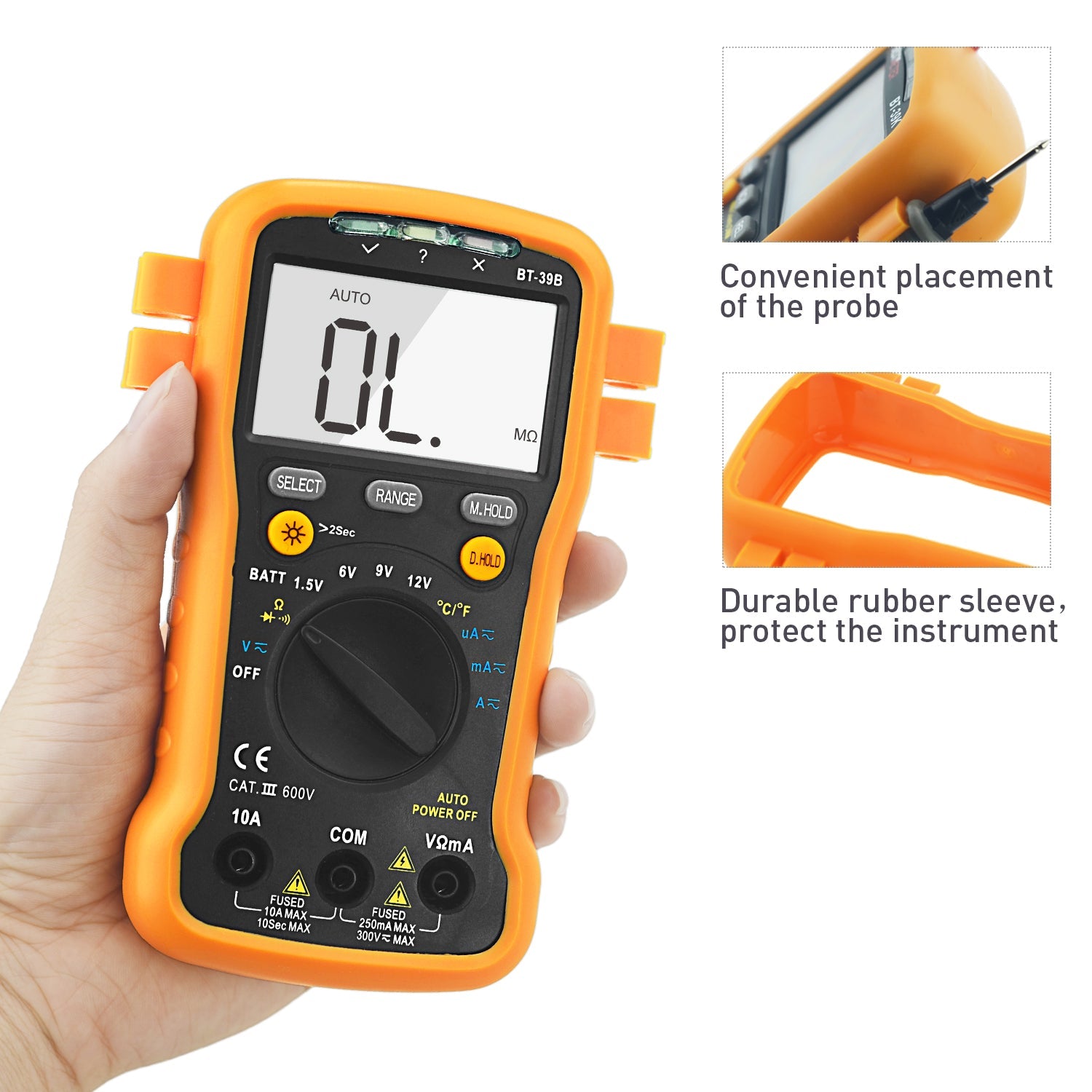

♦ The anti-slip cover with test probe slots can protect multimeter and organize probes as well.

♦ A collapsible back bracket provide good support.

♦ Precision circuit board & overload PROTECTIONS.

♦ Comes with a wrist strap for your convenient carry and operation.

SPECIFICATIONS:

DC Voltage Range: 200mV/2V/20V/200V/600V

DC Voltage Resolution: 0.1mV/1mV/10mV/100mV/1V

AC Voltage Range: 2V/20V/200V/600V

AC Voltage Resolution: 1mV/10mV/100mV/1V

DC Current Range: 200μA/2000μA/20mA/200mA/2A/10A

DC Current Resolution: 0.1μA/1μA/10μA/100μA/1mA/10mA

AC Current Range: 200μA/2000μA/20mA/200mA/2A/10A

AC Current Resolution: 0.1μA/1μA/10μA/100μA/1mA/10mA

Resistance Range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

Resistance Resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ

Temperature Range: -20~150°C, 150~1000°C; -4~302°F, 302~1832°F

Temperature Resolution: 1℃; 1℉

Battery Test Range: 1.5V/6V/9V/12V

Battery Test Load Current: Approx. 10mA/100mA/10mA/200mA

Battery Test Resolution: 1mV/10mV/10mV/10mV

LED Light Range: 1.5V/6V/9V/12V

OTHER PARAMETERS:

Material Plastic
Color Black+Orange
Display LCD display with backlight
Power Supply 1 x 9V 6F22 Battery (Not included)
Screen Size 5 x 3 cm / 2 x 1.2in
Item Size 14.5 x 10 x 3.5cm / 5.7 x 3.9 x 1.4in
Item Weight 207g/7.3oz
Package Size 18 x 12 x 5.8cm / 7.1 x 4.7 x 2.3in
Package Weight 344g/12.1oz



PACKAGE INCLUDED:

1 x HoldPeak HP-39B Backlight Digital Multimeter

1 x Pair of Test Leads

1 x "K" Type Thermocouple Sensor Probe

1 x Wrist Strap

1 x User Manual
