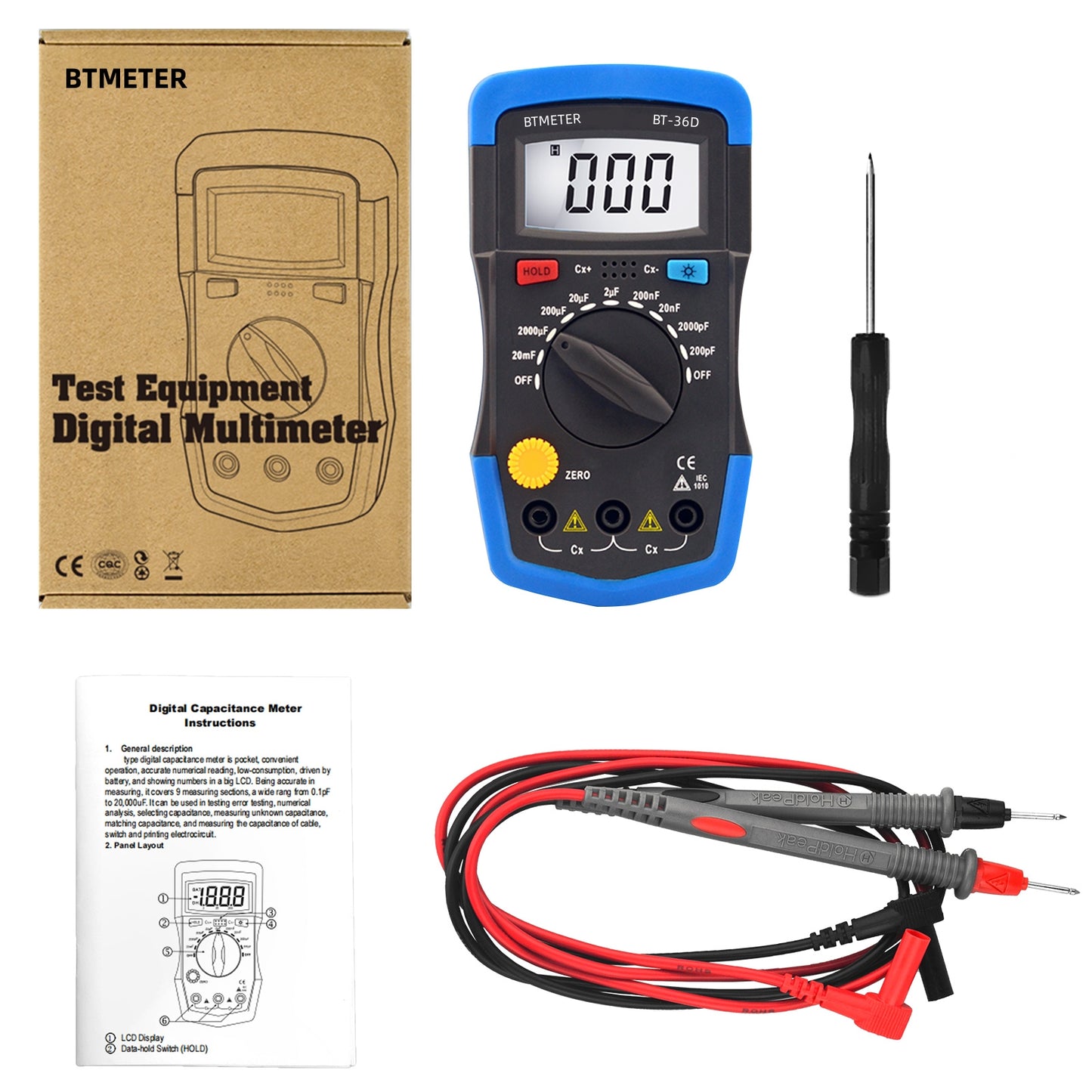

BTMETER BT-36D Capacitance Tester Meter Manual Range 1999 Counts
BTMETER BT-36D Capacitance Tester Meter Manual Range 1999 Counts
受取状況を読み込めませんでした
PRODUCT DESCRIPTION
▶ HP-36D digital capacitance meter is portable, easily operation, accurate numerical reading,
▶ Low-consumption, driven by battery, and showing numbers in a big LCD.
▶ Being accurate in measuring, it covers 9 measuring sections, a wide rang from 0.1pF to 20,000uF.
▶ It can be used in testing error testing, numerical analysis, selecting capacitance, measuring unknown capacitance, matching capacitance, and measuring the capacitance of cable, switch and printing electrocircuit.
PRODUCT FUNCTION
✔ Display: 1999 counts
✔ Power Supply: 9V(6F22x1) (NOT including in the package)
✔ Meauring Capacitance Range: 200pF/2nF/20nF/200nF/2uF/20uF/200uF/2000uF/20000uF
✔ Manual Range
✔ Capacitance Test
✔ Back Light
✔ Data Hold
SPECIFICATION
| Rang | Accuracy | Definition | Testing Frequncy |
| 200pF | ±0.5%±20 digit | 0.1pF | 800Hz |
| 2nF | ±0.5%±20 digit | 1pF | 800Hz |
| 20nF | ±0.5%±20 digit | 10pF | 800Hz |
| 200nF | ±0.5%±20 digit | 0.1nF | 800Hz |
| 2uF | ±0.5%±20 digit | 1nF | 800Hz |
| 20uF | ±0.5%±20 digit | 10nF | 80Hz |
| 200uF | ±0.5%±20 digit | 0.1uF | 8Hz |
| 2000uF | ±2.0%±20 digit | 1uF | 8Hz |
| 20000uF | ±4.0%±20 digit | 10uF | 8Hz |
