BTMETER BT-870N Auto Range Multimetro Digital Clamp Meter Multimeter

2 sold in last 8 hours
BTMETER
BT-870N
Out of stock Many in stock
$44.99

PRODUCT DESCRIPTION

★ BT-870N is characterized at full range over current protection,low power consumption,stable performance and anti-dropping capacity.

★ Auto...

Size Guide
$44.99

customers are viewing this product
BTMETER BT-870N Auto Range Multimetro Digital Clamp Meter Multimeter

PRODUCT DESCRIPTION

★ BT-870N is characterized at full range over current protection,low power consumption,stable performance and anti-dropping capacity.

★ Auto ranging clamp multimeter with AC/DC current, AC/DC voltage, resistance, capacitance, temperature, frequency, diode test, continuity test,Inrush Current Test,Relative Value

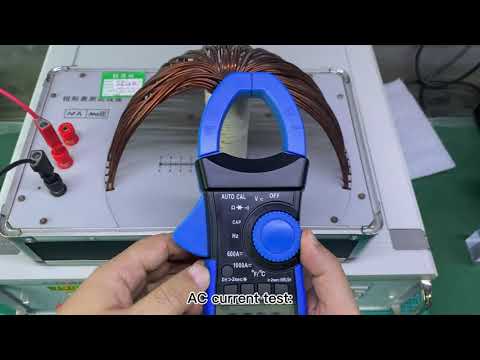

★ Jaw opening measures AC current in a conductor up to 45mm without interrupting the circuit.

★ Features Data Hold, Max/Min Reading, Backlight, an easy-to-read large LCD.

★ Comes with a handy carrying pouch - Perfect for use while on the go.

★ HP-870N can be widely used in home, school ,smelting, communications, manufacturing, petroleum refining industry, national defense, electricity and chemical industries, etc.

BASIC FUNCTION

★Conform to the IEC61010-1 & IEC61010-032 standard

★Double insulation (protection class 600V CAT III and pollution degree 2)

★Inrush function

★The over-molding rubber case protects the meter to be stronger

★Auto Range/True RMS

★DC/AC Voltage Test

★DC/AC Current Test

★Test Diode Test/Continuity Buzzer

★Back Light/Data Hold

★Auto Power Off

★Inrush Current Test

★Relative Value

★Temperature Unit Select

★Min Max/ Relative Value

★Resistance/ Capacitance/ Temperature/ Frequency/ Duty Cycle Test

SPECIFICATION

Display: 6000 counts

DC current: 200A/1000A ±3.0%

AC current: 200A/1000A ±3.0%

DC voltage: 600mV/6V/60V/600V/1000V ±0.8%

AC voltage: 600mV/6V/60V/600V/750V ±1.0%

Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ ±1.8%, 60MΩ ±3.5%

Capacitance: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/999.99mF ±2.5%

Temperature: -20~1000℃ ±2℃ / -4~1832℉ ±2.5% of  rdg

Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±2.50%

Duty cycle: 0.1%~99.9% ±3.0%

Continuity checking with buzzer

Diode test

MAX.Diameter for conductor: 45mm

Power: 9V(6F22)*1 (not included)

Size: 225mm x 97mm x 40mm
