BTMETER BT-870P Clamp Active Reactive Power Meter AC DC 999.9A
BTMETER BT-870P Clamp Active Reactive Power Meter AC DC 999.9A
受取状況を読み込めませんでした
PRODUCT DESCRIPTION
▶ BT-870P digital power clamp meter is a handheld aptitude meter with power measurement, it is incorporated current meter and power measurement instrument.

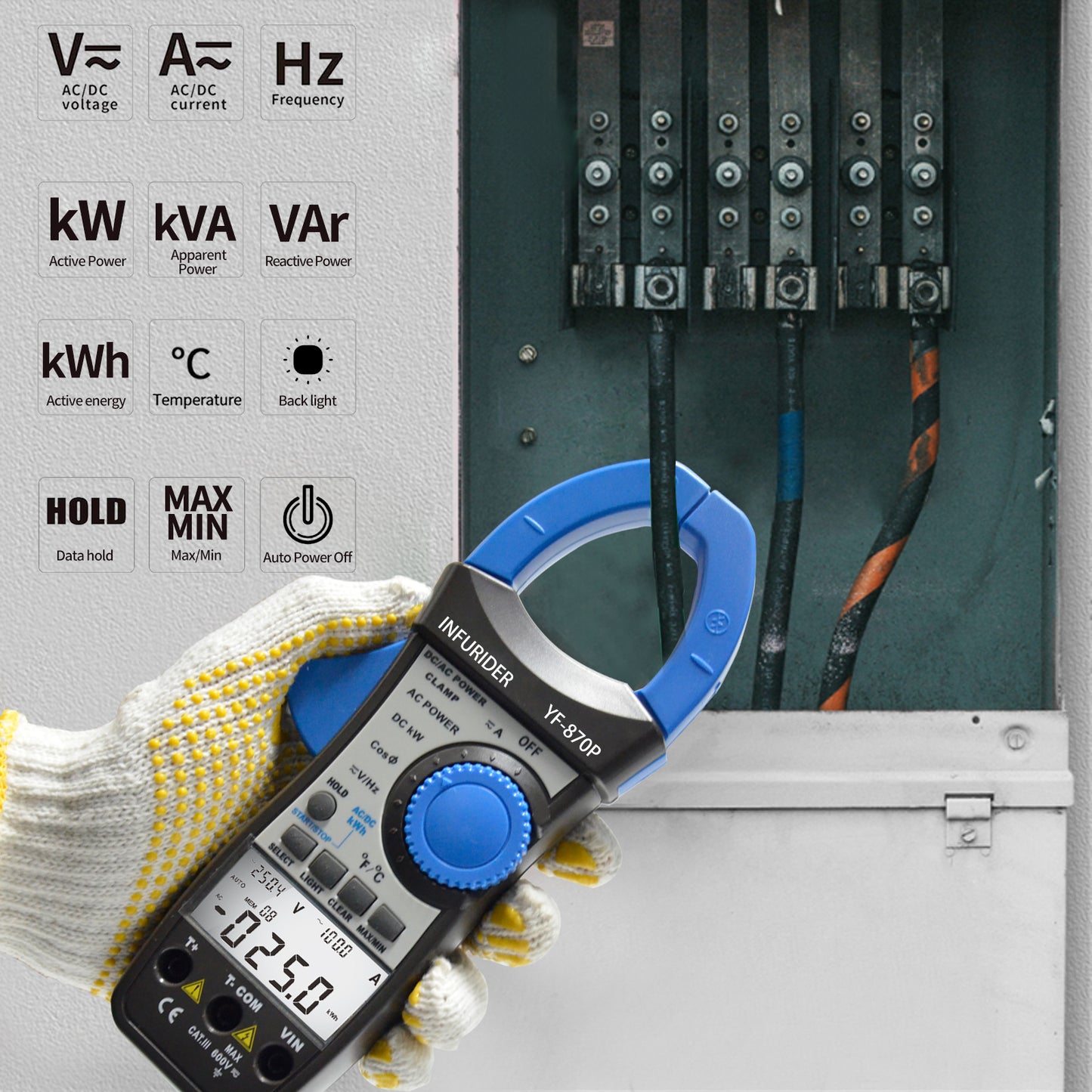

▶ BT-870P has powerful measuring, and complete to measure, calculate and display of the 8 parameters: Voltage, Current, Active Power, Power Factor, Apparent Power, Reactive Power, Active Energy, Frequency.

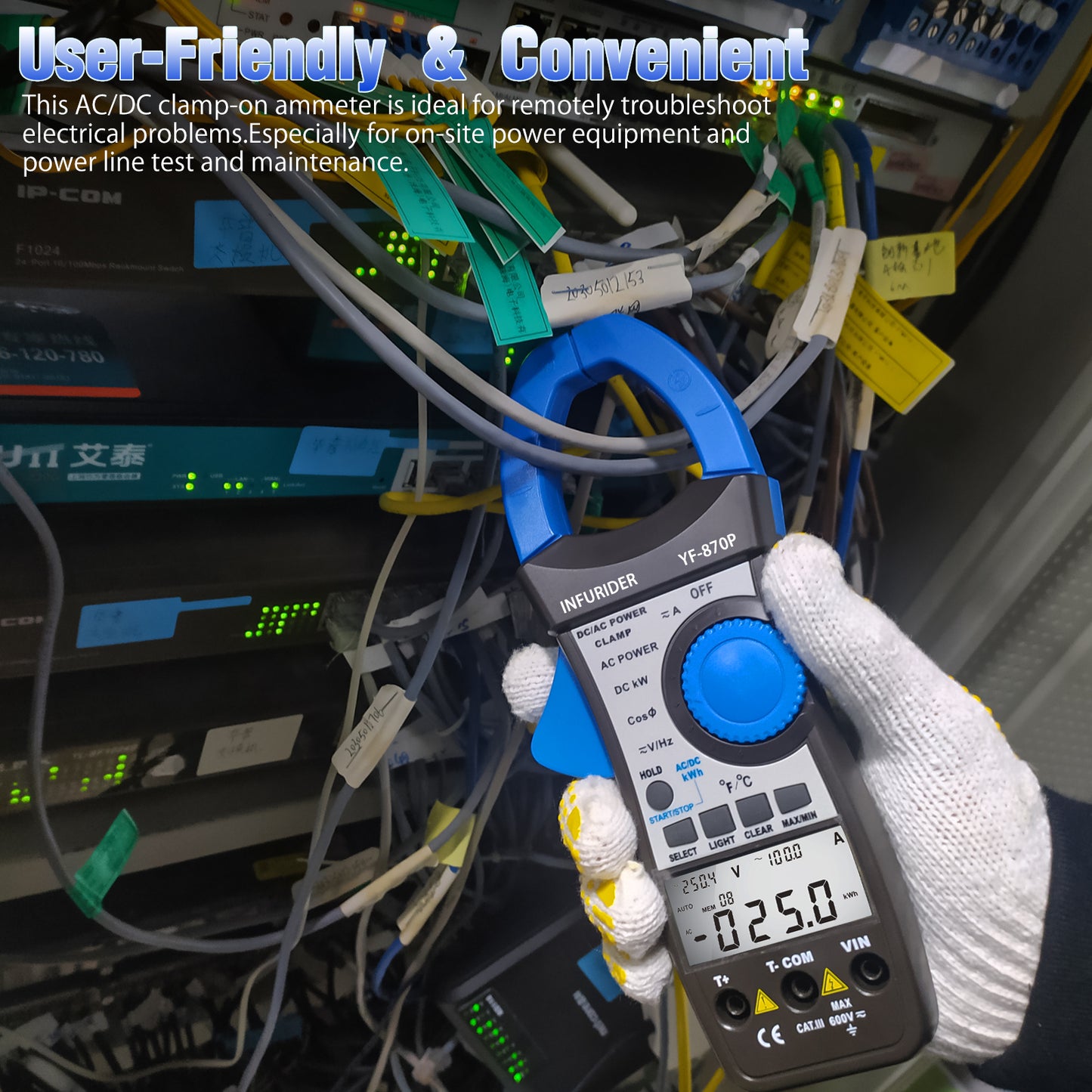

▶ It is especially suitable for measurement and overhaul of the electric power equipment and the power-supply circuit on the spot.

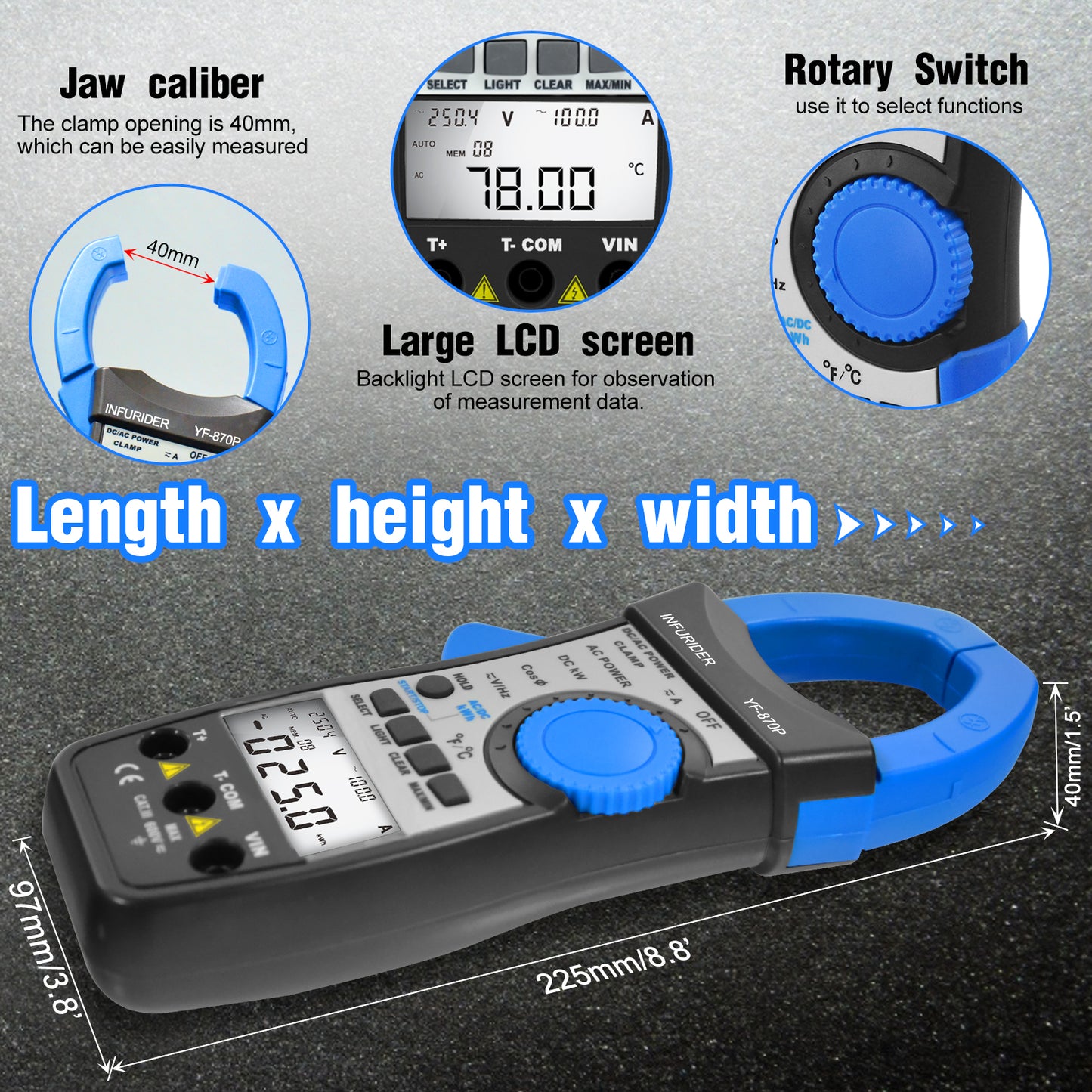

▶ The structure of the instrument is pincers, it is very small, very light and portable, make measurement easy and fast.

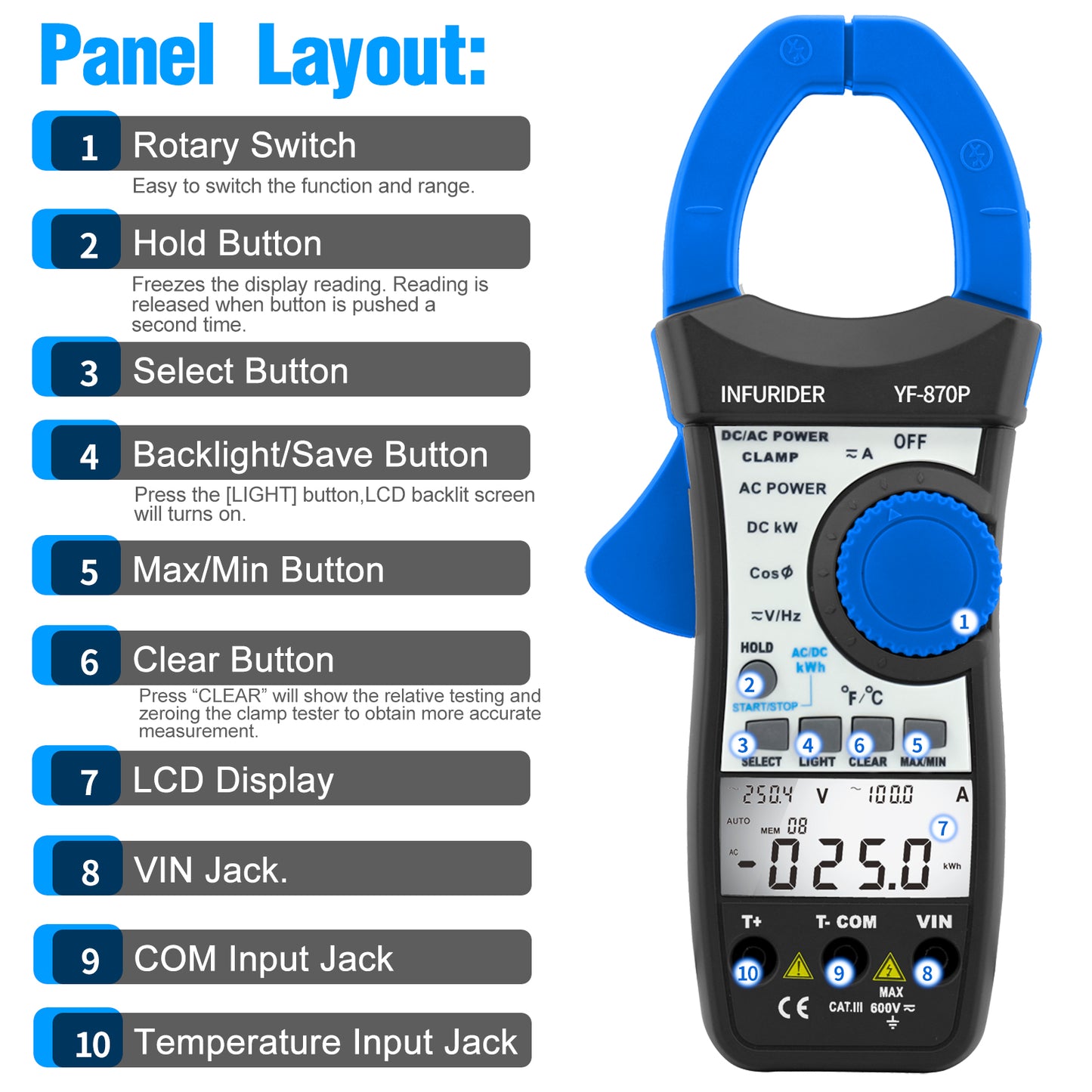

▶ The meter has functions such as data hold, backlight illumination, MAX/MIN test, and auto power off.

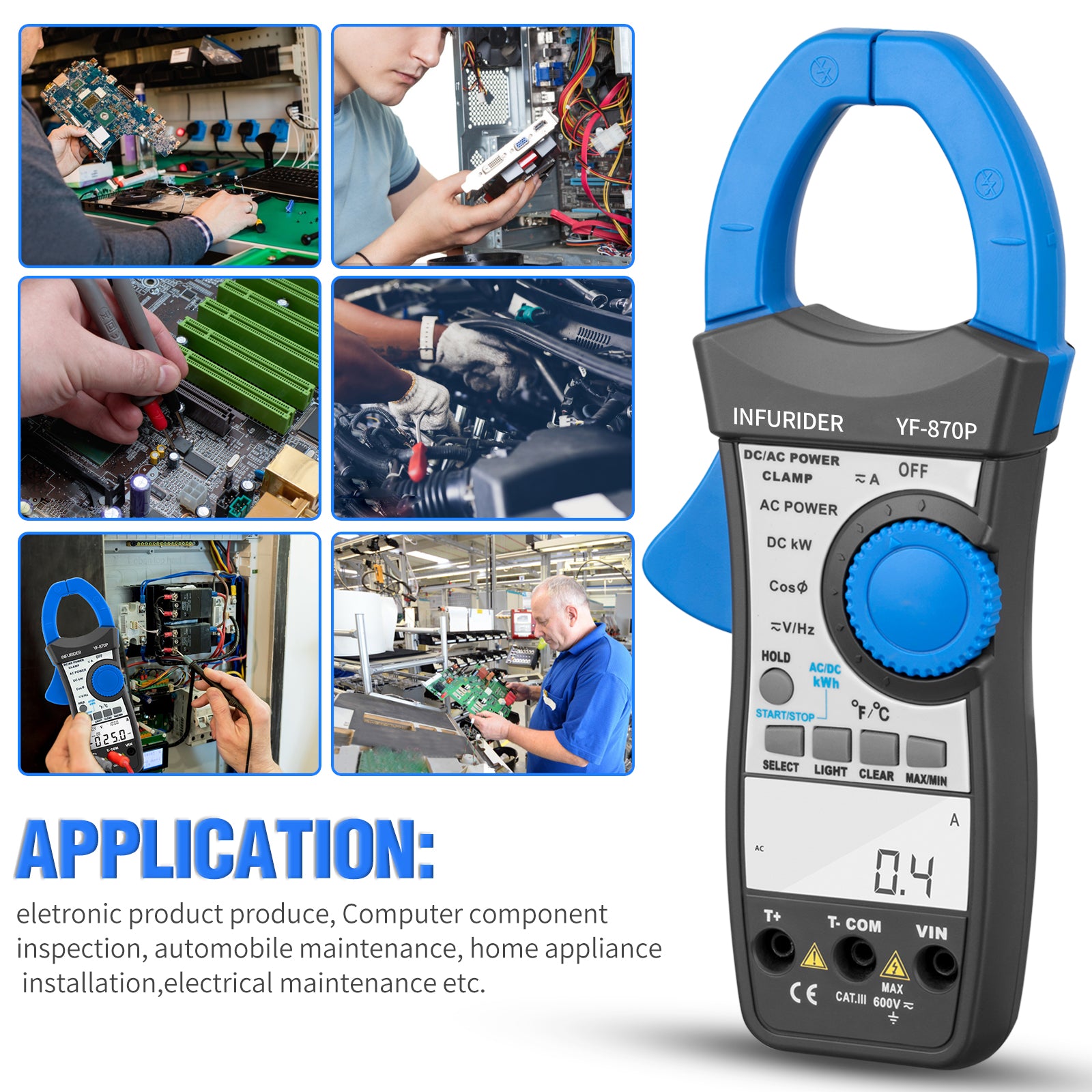

▶ This meter can be widely used in home, school, smelting, communications, manufacturing, petroleum refining industry, national defense, electricity and chemical industries, etc. It’s an ideal tool for the maintenance and repair of the circuit, power equipment.
SPECIFICATION
| Model | Range | Accuracy |
| DC Voltage | 1.0~600V | ±(1.0% of rdg +8 digits) |
| AC Voltage | 1.0~600V | ±(1.0% of rdg +8 digits) |
| DC Current | 1.0~999.9A | ±(2.5% of rdg +15 digits) |
| AC Current | 1.0~999.9A | ±(2.5% of rdg +15 digits) |
| Temperature | -20~150℃ | ±(3.0% of rdg +2 digits) |
| 150~1370℃ | ±(3.0% of rdg +2 digits) | |
| Frequency | 45Hz~99.99Hz/100Hz~250Hz | ±(0.5% of rdg +5 digits) |
FUNCTION

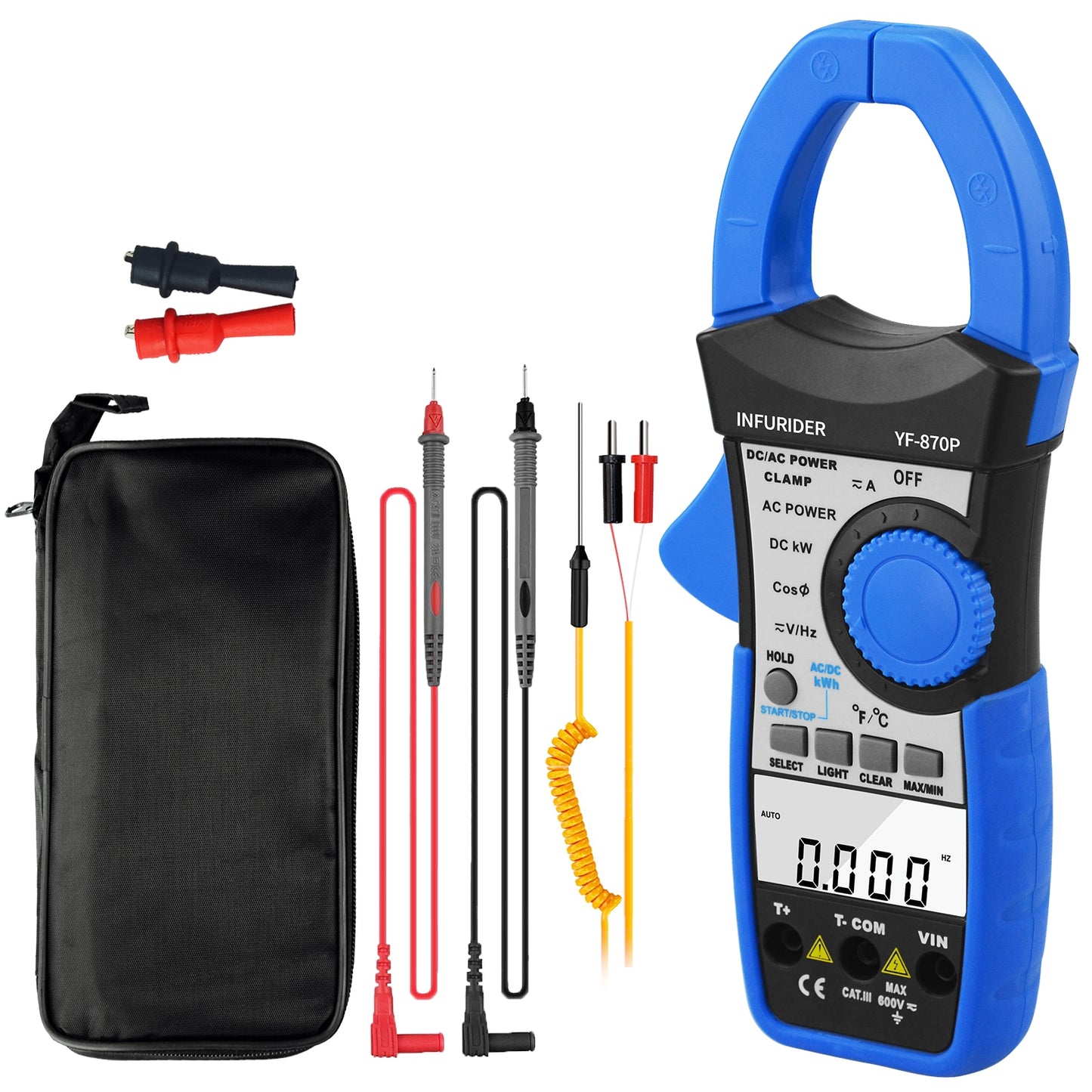

PACKAGE INCLUDED
1 x HP-870P Power Clamp Meter
1 x English Manual
1 x Test Lead
1 x Temperature Test Probe
1 x Carrying Bag
