BT-7200S-APP Smart Bluetooth Clamp Multimeter - 6000-count true RMS AC/DC clamp meter with APP remote monitoring, capable of measuring voltage/current/resistance/capacitance/frequency/temperature/NCV non-contact voltage measurement.
Core Features
-
Measurement Capabilities:
-
Voltage: DC/AC 0.1mV~600V (True RMS)
-
Current: DC/AC...
-
Core Features
-
Measurement Capabilities:
-
Voltage: DC/AC 0.1mV~600V (True RMS)
-
Current: DC/AC 0.001A~60A (20mm Jaw Opening)
-
Resistance: 0.1Ω~60MΩ
-
Capacitance: 1pF~60mF
-
Temperature: -20℃~1000℃ (K-Type Thermocouple)
-
Frequency/Duty Cycle: 0.001Hz~9.999MHz
-

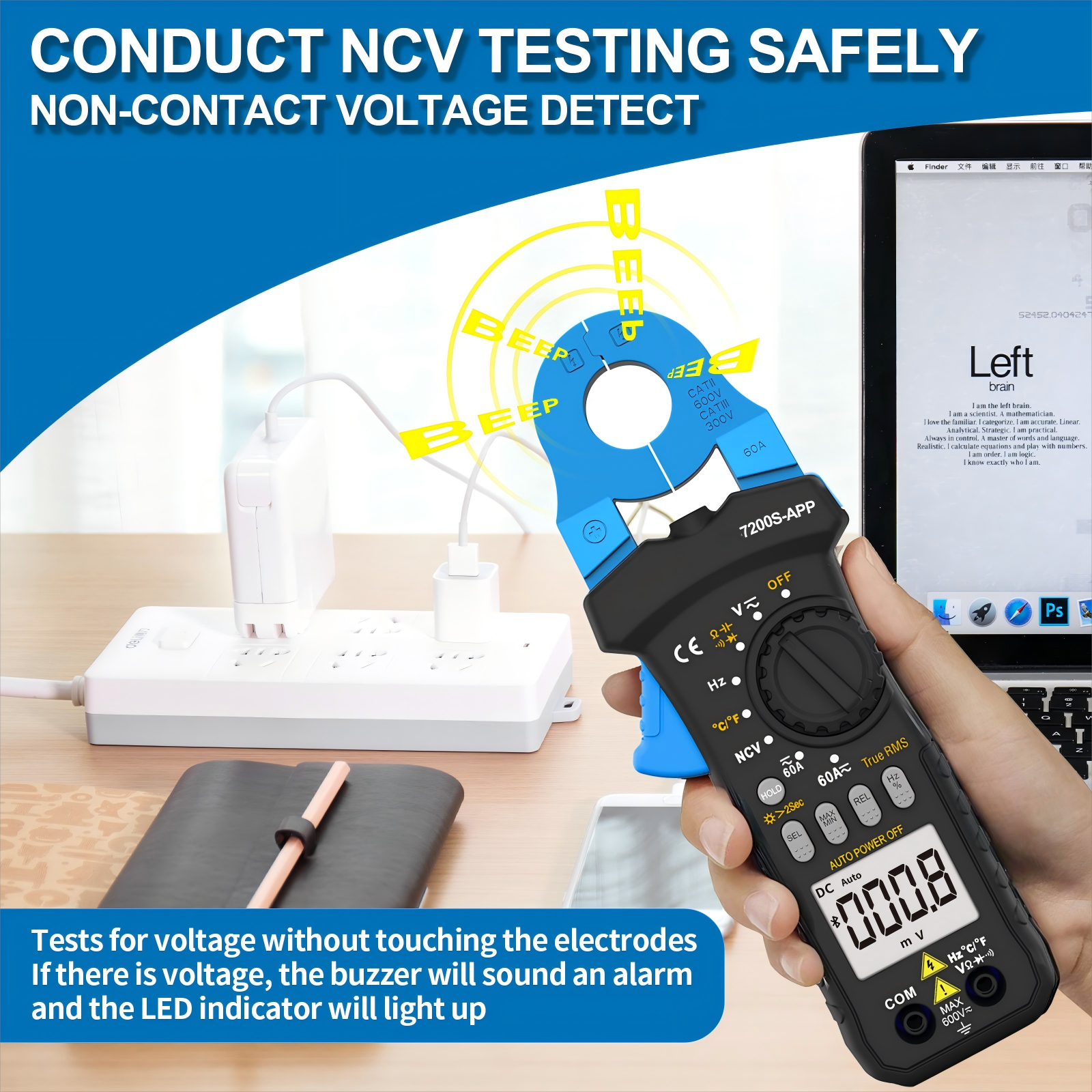

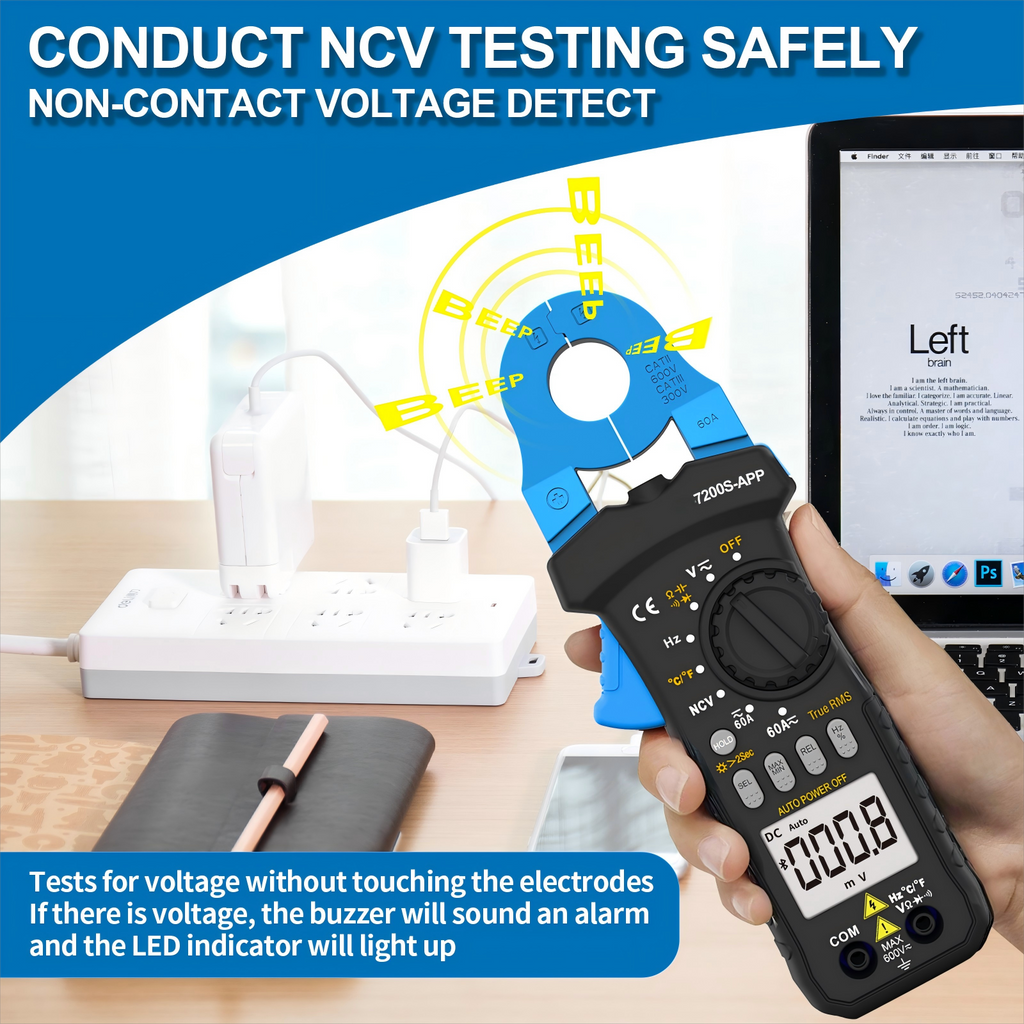

NCV Detection: 90V~1000V AC
-
-

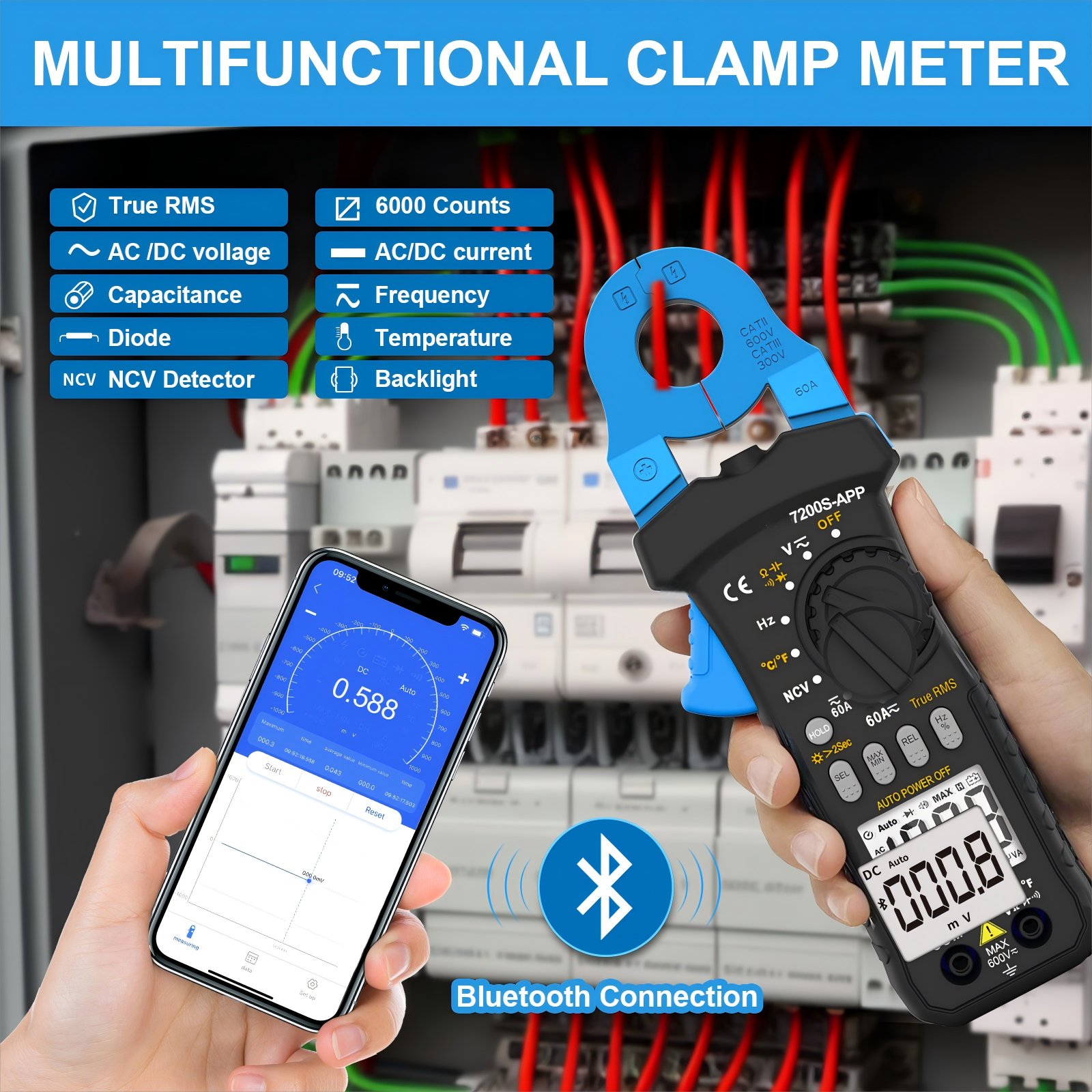

Smart Connectivity:
-
Bluetooth 10-15m Range for APP (iOS/Android)
-
Real-Time Data Logging, History Review, Max/Min Values
-
Technical Specifications
| Category | Details |
|---|---|
| Display | 6000-count LCD (16mm Character Height), Backlit |
| Accuracy | - DC Voltage: ±(0.5%+2 digits) - Temp: ±(3℃+1 digit) - Freq: ±0.1%+5 digits (See Manual) |
| Safety Rating | CAT Ⅱ 600V / CAT Ⅲ 300V, Double Insulation |
| Power | 2×AAA Batteries (1.5V), Low Battery Indicator |
| Environment | Operating Temp: 0℃~40℃ Storage Temp: -10℃~50℃ (Humidity ≤85%) |

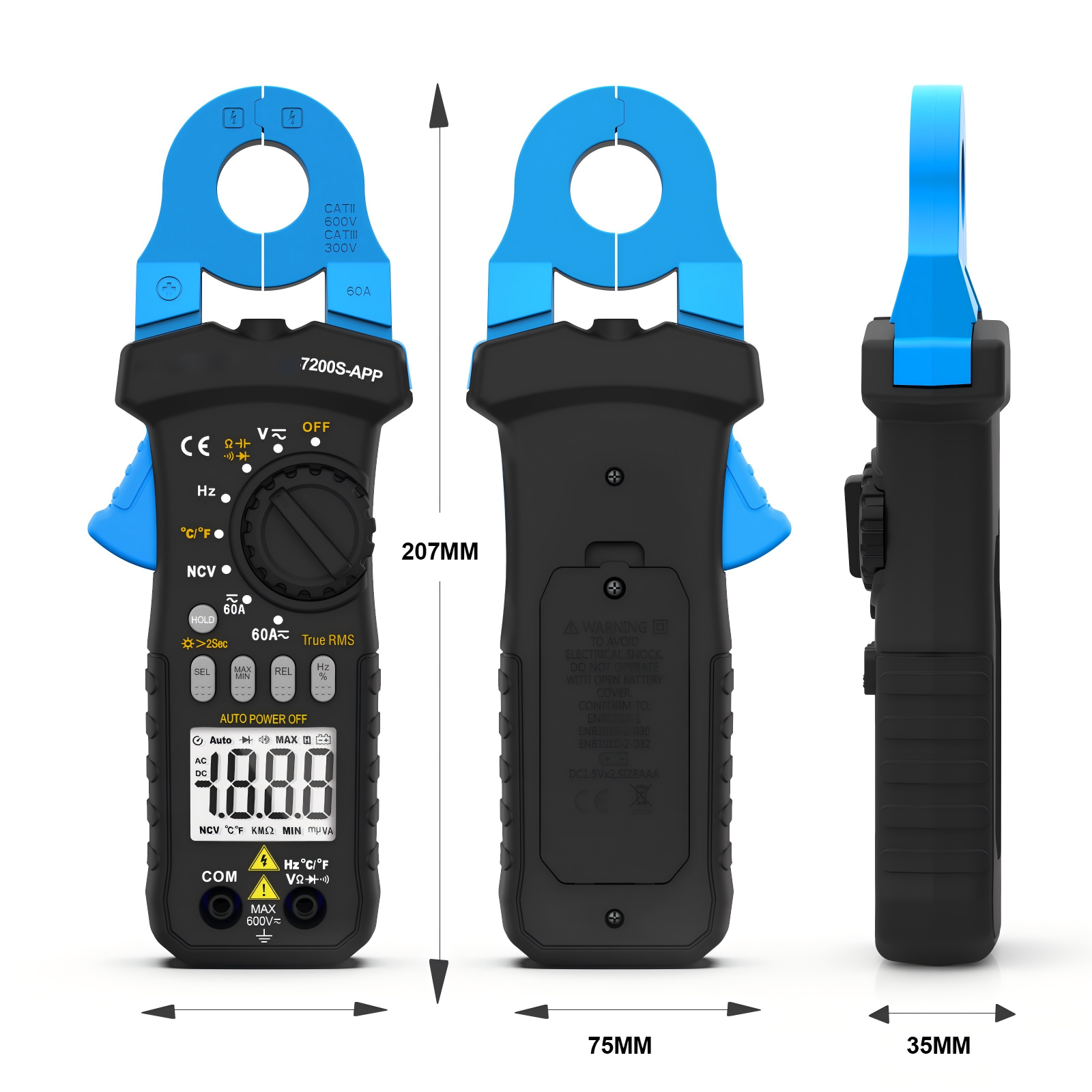

| Size/Weight | 207×75×37mm / 280g (Including Batteries) |
Operational Highlights
-
One-Touch Toggle: DC/AC Mode, Units (℃/℉), Functions (Resistance/Capacitance/Diode, etc.)
-
Data Hold: HOLD Key to Freeze Values, MAX/MIN Recording
-
Safety Protections: Overload Protection, Input Voltage Alerts (250V/600V)

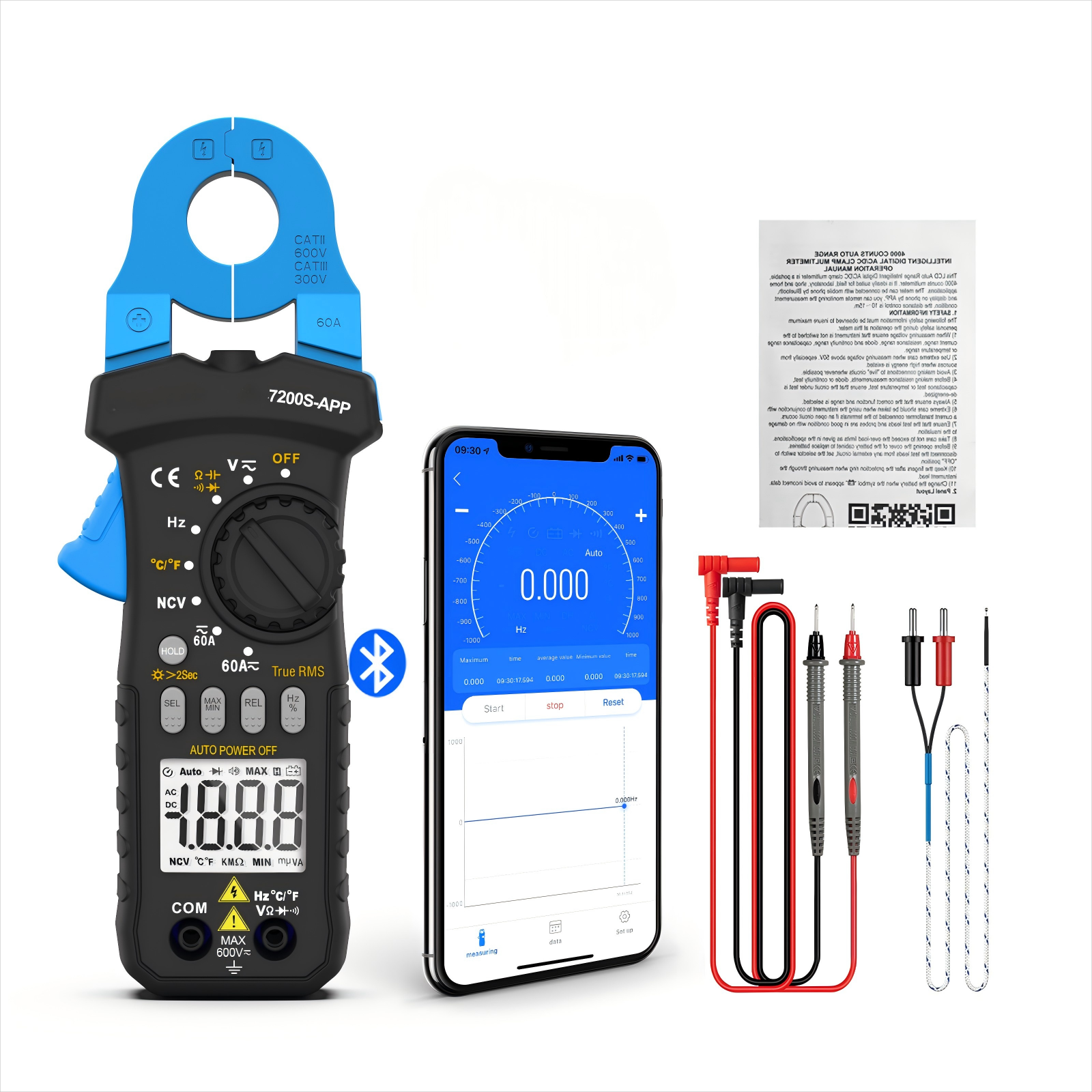

Included Accessories
-
Test Leads (Rated 600V 10A)
-
K-Type Thermocouple Probe
-
User Manual (With APP Download QR Code)
7 Days free refund, 15 Days free replace, 365 Days Warranty, Lifetime Tech-support.
