BTMETER BT-870K Clamp Multimeter, DC AC Digital Voltage Current Meter, Auto Electric DMM Tester Avometer
BTMETER BT-870K Clamp Multimeter, DC AC Digital Voltage Current Meter, Auto Electric DMM Tester Avometer
Couldn't load pickup availability
PRODUCT DESCRIPTION
⚡【Accurate AC Current Meter】Accurately measure DC volts up to 1000V, AC voltage 750C, AC/ DC current 30A, resistance 40mΩ, capacitance 100μF ,frequency 51.2kHz, temperature -20~1000 ℃, diode and continuity test.
⚡【Wide Applications Multitester】Professionally designed for household troubleshooting problem, HVAC, automotive repair and maintenance, filed, laboratory and shop. Auto ranging voltmeter avoids meter damage because of wrong range selection, suits for both hobbyist and professionals.
⚡【Easy Operate Amperage Meter】Just clamp the tester on one cable, and get instant readings. No need to break the circuit. Backlight LCD ensure easy visibility even in dim or dark conditions.
⚡【Loads of Features Electric Tester】Auto power off to save battery and extend service time, data hold for later reference, relative measurement, back light, auto range, etc. All the functions you need.

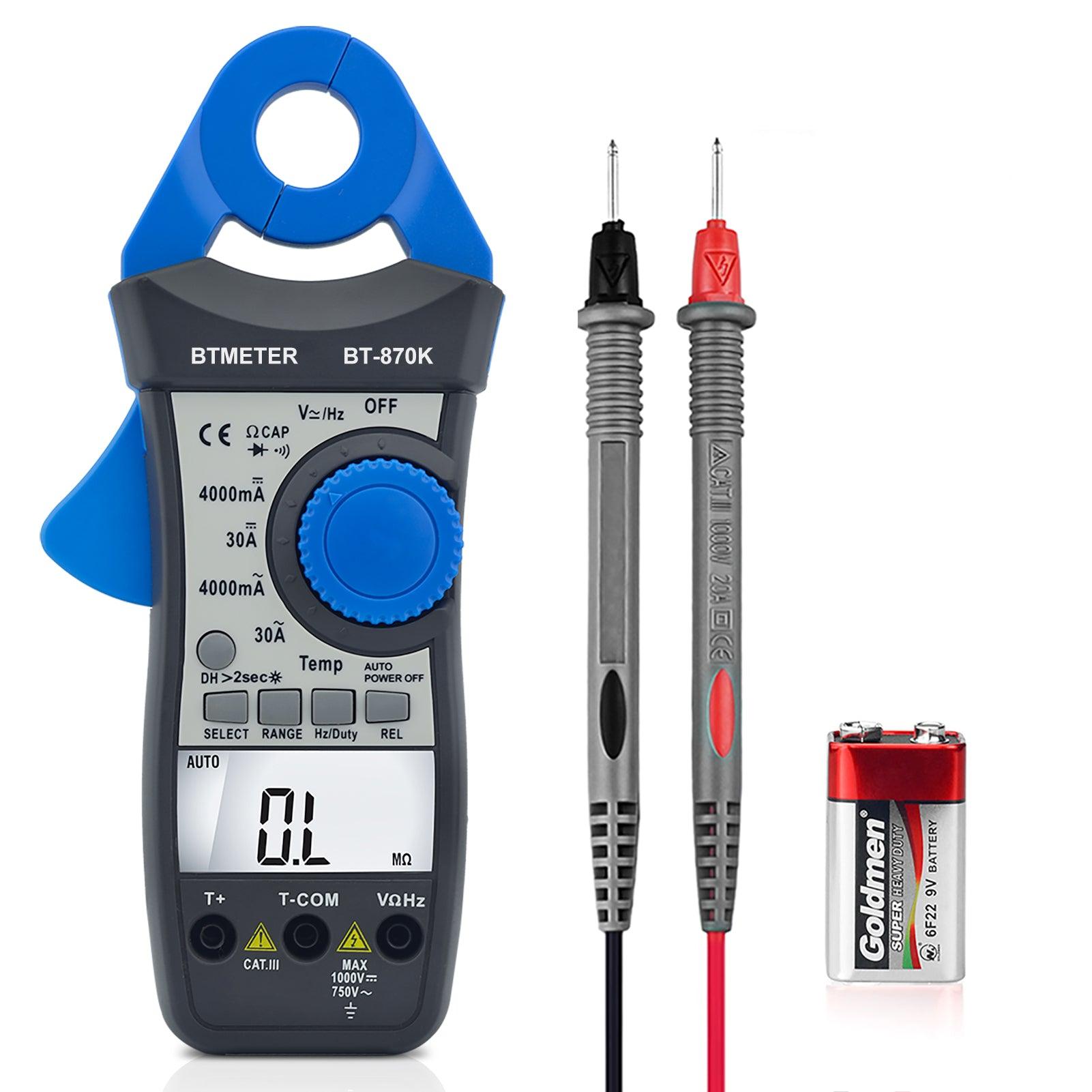

⚡【100% Worry-free Guarantee】Test leads, thermocouple probe and zippered carrying case included. BTMETER provides 12 months warranty and lifetime tech support!
MORE FEATURES
● Data Hold
● Backlight LCD
● Auto Zero Out
● Auto Power OFF

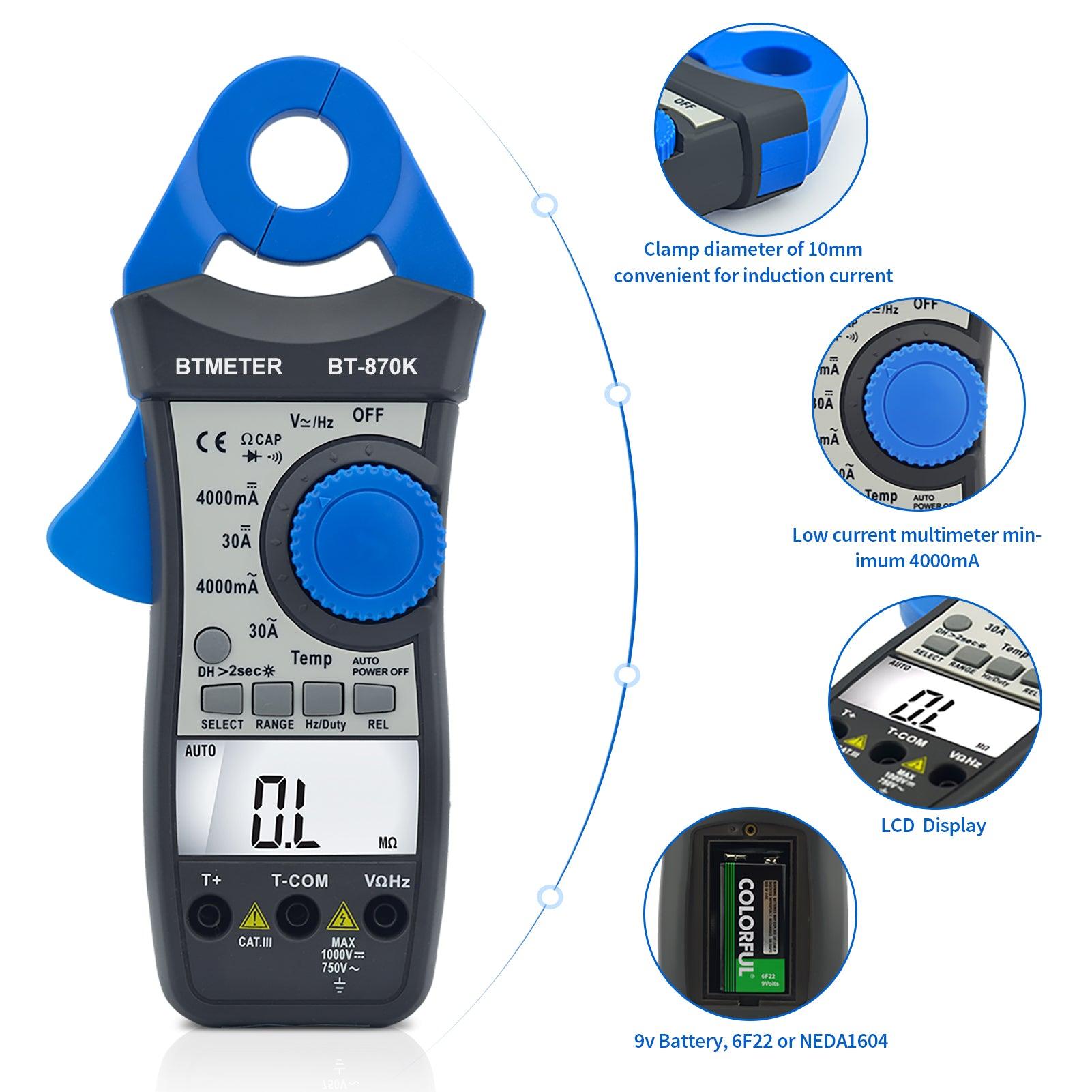

● 0.83" Clamp Size
● Continuity Buzzer
● Auto/Manual Range
● Low Battery Indicator
● Over Range Indication
SPECIFICATIONS
DC Voltage |
Resolution: 400mV/4V/40V/400V/1000V:0.1mV/1mV/ 10mV/100mV/1V |
(0.1mV~1000V) |
Accuracy:400mV: 1.2% of rd g+5digit; 4V/40V/400V: ±(0.8% + 5 digits); 1000V: ±(1.5 % + 5 digits) |
AC Voltage |
Resolution: 400mA/4V/40V/400V/750V:0.1mV/1mV/ 10mV/100mV/1V |
(0.1mV~750V) | Accuracy: 400mA:±(2.5% + 15 digits) ; 4V/40V/400V:±(1.2% + 15 digits) 750V:±(2.5% + 15 digits) |
DC & AC Current | Resolution: 400mA/30A:1mA/10mA |
(1mA~30A) | Accuracy: 400mA:±(3.5% + 10 digits); 30A:±(3.0% + 10 digits) |
Resistance |
Resolution:400Ω/4kΩ/40kΩ/400kΩ/4MΩ/ 40MΩ:0.1Ω/1Ω/10Ω/100Ω/1KΩ/10KΩ |
(0.1Ω~10kΩ) | Accuracy:400Ω:±(1.8% + 20 digits) 4KΩ/40KΩ/400KΩ/4MΩ:±(1.2 % + 10 digits) 40MΩ:±(2.0% + 20 digits) |
Capacitance |
Resolution:51.2nF/512nF/5.12µF/51.2µF/ 100µF:10pF/100p/1nF/10nF/100nF |
(10pF~100µF) | Accuracy:51.2nF:±(3.5% + 10 digits); 512nF/5.12µF/51.2µF:±(2.5% + 10 digits) 100µF±(3.5% + 10 digits) |
Temperature | Resolution:1℃ |
(-20~1000℃) | Accuracy:-20~150℃: 3℃+ 2 ; 150~300℃:± ( 3% + 2digits ) ;300~1000℃:± ( 3.5% + 10digits) |
Frequency |
Resolution:51.2Hz/512Hz/5.12kHz/51.2kHz: 0.01Hz/0.1Hz/1Hz/10Hz |
(0.01Hz~5.12MHz) | Accuracy: ± (0.5% + 5 digits) |
