Solar Panel Tester 800W, Smart MPPT Open Circuit Voltage Troubleshooting Tool for Solar PV Testing
Solar Panel Tester 800W, Smart MPPT Open Circuit Voltage Troubleshooting Tool for Solar PV Testing
Couldn't load pickup availability
Product Description:

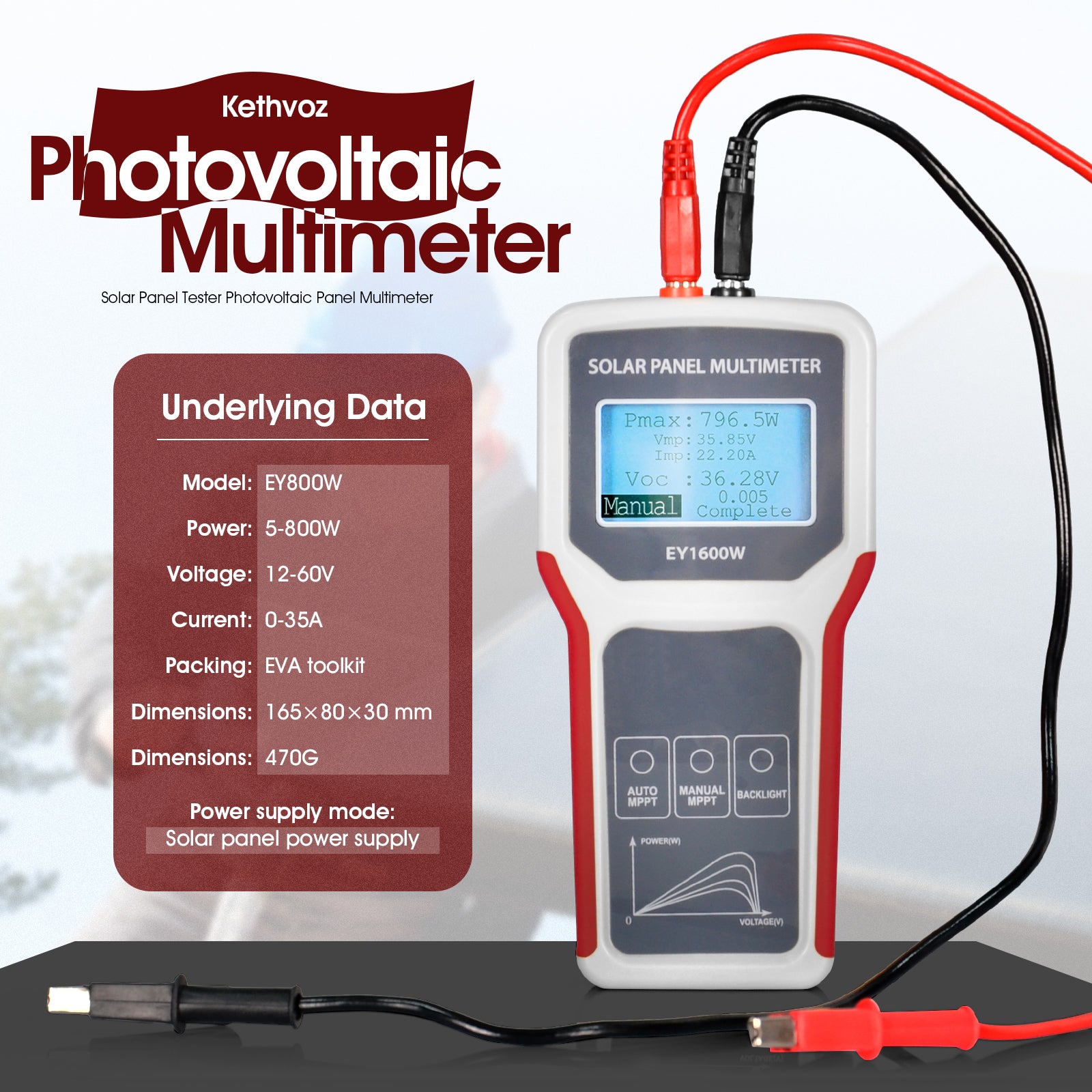

The solar panel tester is a highly accurate instrument designed specifically for testing photovoltaic panels. It provides comprehensive measurements to determine the maximum power point and open-circuit voltage of solar panels, allowing users to assess the quality and production of the panels.
The solar panel multimeter is suitable for portable solar systems, foldable solar panels, solar photovoltaic kits, automotive/marine solar power generation, rooftop solar panels, and other related applications. Its versatility makes it an essential tool for professionals and enthusiasts working with solar energy.
Key Features:
-

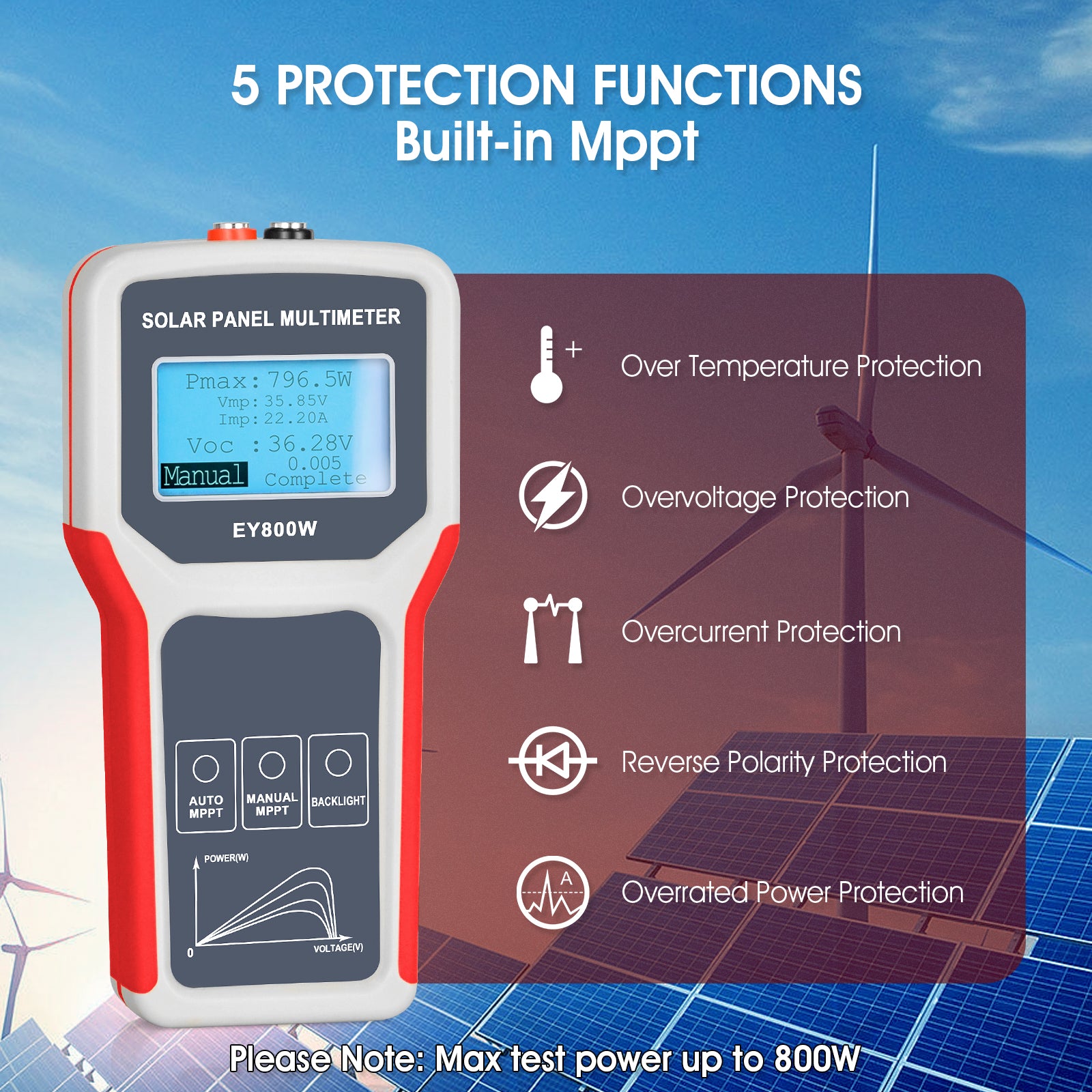

Multiple Safety Protections: Equipped with over-temperature protection, over-voltage protection, over-current protection, reverse connection protection, and overload protection. These features ensure the safety and longevity of the instrument and the solar panels being tested.
-

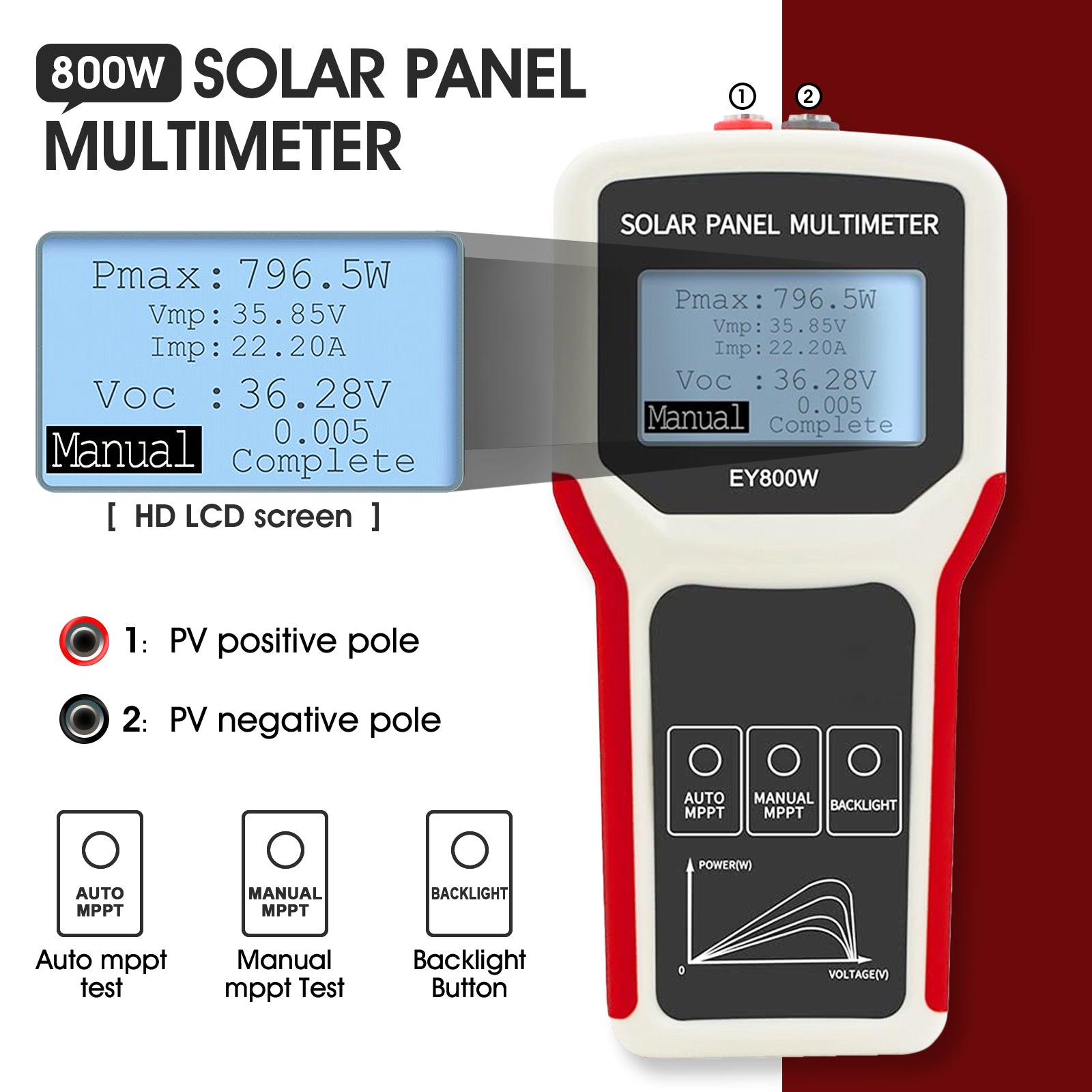

High-Definition Backlight: The multimeter features a high-definition LCD display with a built-in backlight, enabling clear visibility even under direct sunlight. Users can easily read and interpret the measurement results.
-
Battery-Free Operation: Powered by the solar panel itself, eliminating the need for additional batteries. This convenient feature ensures continuous and reliable power supply during testing.
-

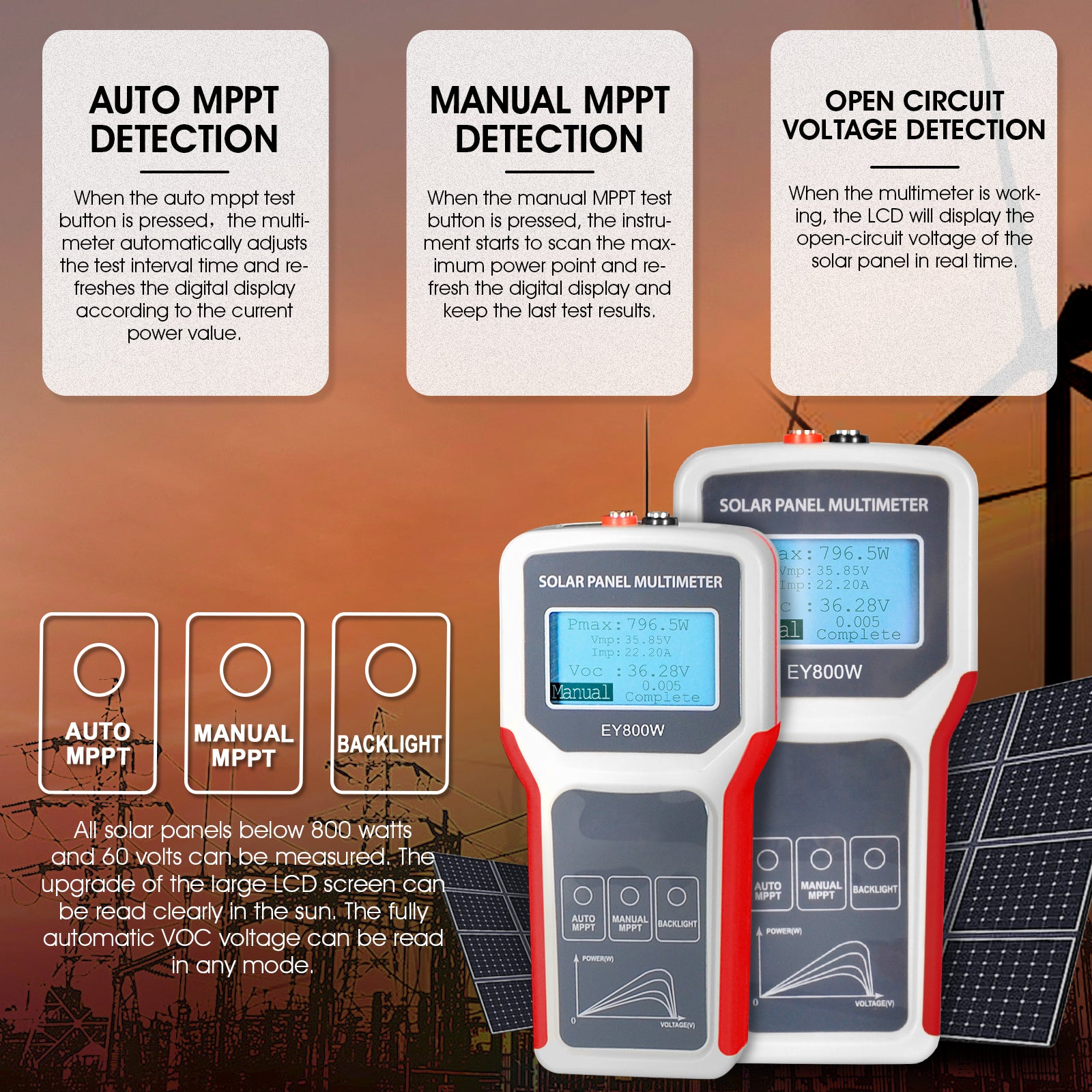

Automatic Measurement for Easy Operation: With the "Auto MPPT" test button, the multimeter automatically measures and displays the values based on the current power output. This simplifies the testing process and provides real-time information.
-
Manual Measurement: By pressing the manual test button, the instrument initiates a one-time scan for the maximum power point and updates the display accordingly. This allows users to manually control and analyze the performance of the solar panel.
| Power | 5-800W |
| Voltage | 12-60V |
| Current | 0-35A |

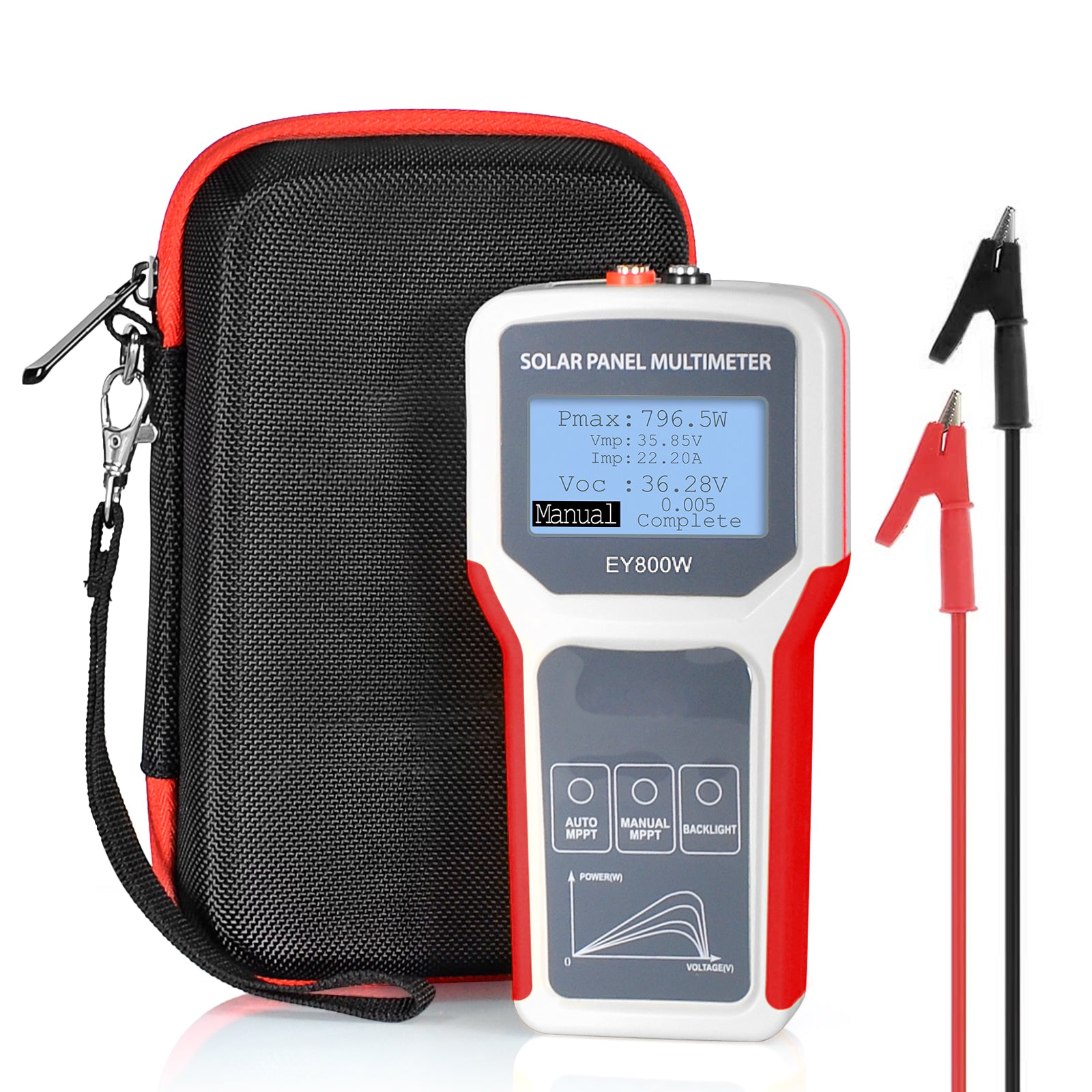

Package List:
1 x Solar Panel Multimeter

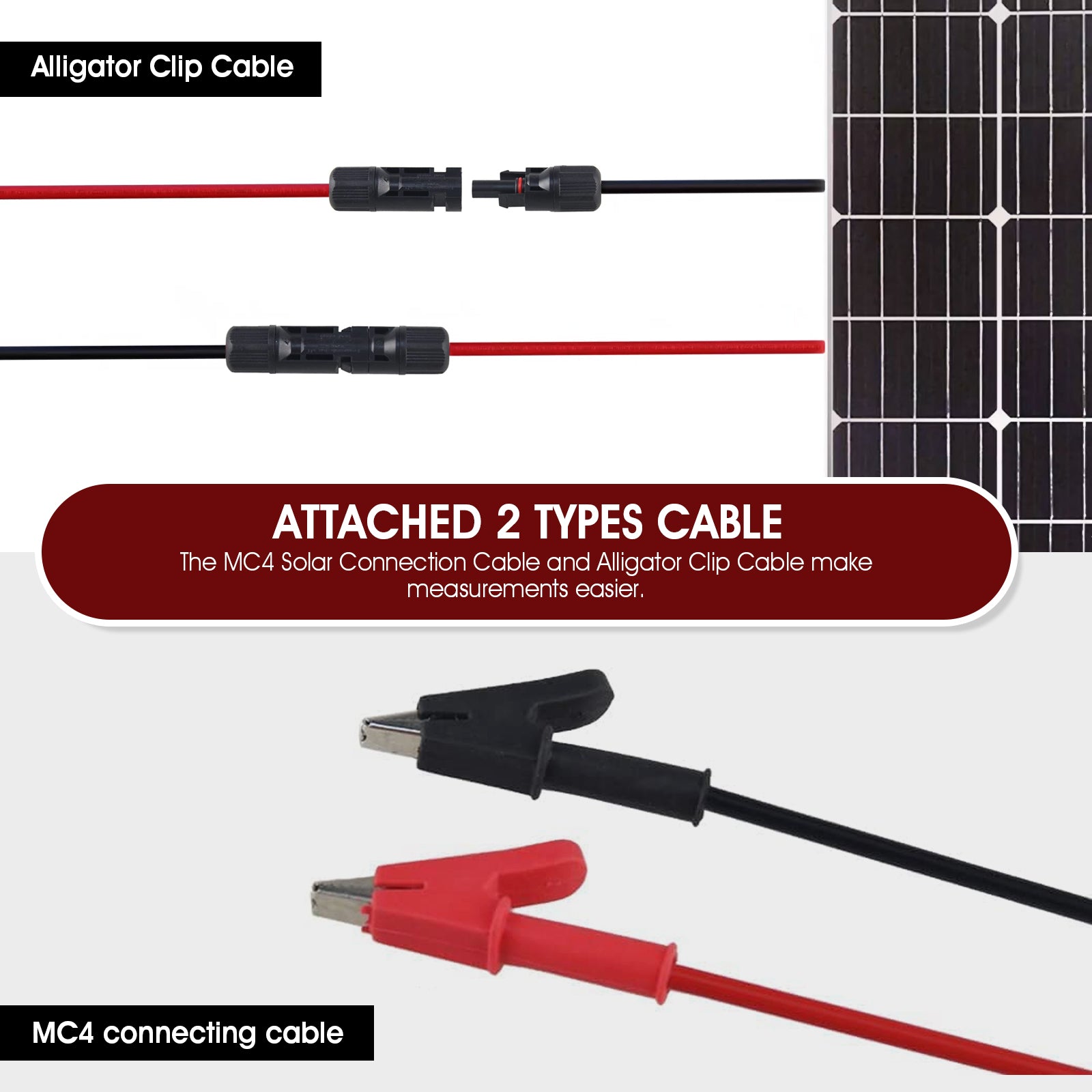

1 x MC-4 Connecting Cable
1 x Alligator Clip Cable
1 x EVA Toolkit
1 x User Manual
